CONTROLLER FOR GAS DETECTOR

Home > Products > CONTROLLER FOR GAS DETECTOR

차량정보 표
Model No.	SINGLE CONTROLLER FOR LNG·LPG GAS DETECTOR SHT-910
Category	CONTROLLER FOR GAS DETECTOR

Description

Affordable entry-level model with sleek design.
Designed with an SMPS channel for universal voltage and frequency use, both domestically and internationally.
All-based gas detection controller with microprocessor for detecting gas leakage and malfunctions.
Allarm and relay contact output function.
Setting of Zero point, Span, Calibration on the front without volume.
Korea Fire Institute of Industrial Technology National certification approvall.
KC certified forBroadcasting and Communication Equipment.
A gas receiver designed for single-channel use, capablle of connecting to gas detectors instaled in the field.
It continuously measures ambient gasconcentration in real time, displays the gas concentration, and triggers alarms based on pre-set danger thresholds.

Modell No.

SHT-910

Measuring gas

LNG, LPG

Measuring range

0~100%(LEL)

Input signal

4~20mA

Measuring display

3 Digit FND Digital display

Output signal

12V.DC, Relay contact

Alarm sound

More than 70dB

Operating temp'/humi'

-20°C~+40°C/85% RH

Operating power

220/100V.AC, 50/60Hz

Consumption electric power

5.5W

Mounting type

Wall mounting

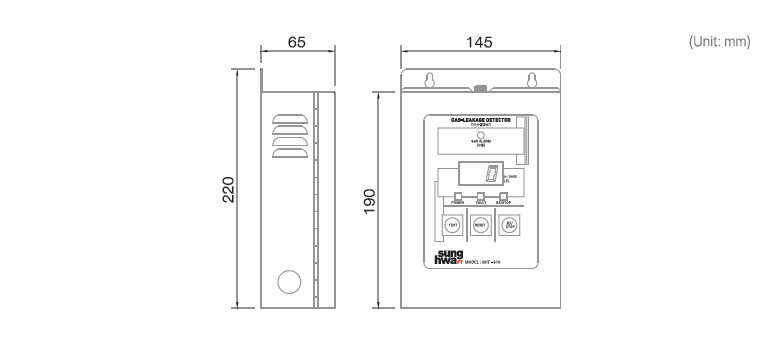

Dimension

145(W) × 220(H) × 65(D)

Weight

1.12 Kgs
