Model No.	GAS PRESSURE ALARM DEVICE SHT-901
Category	ETC.

Description

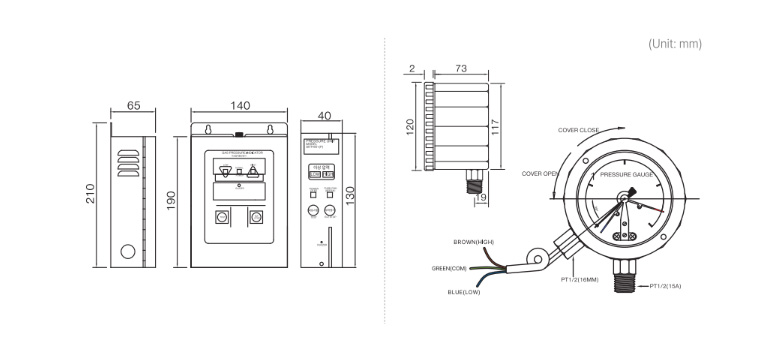

MODEL : SHT-901(I)
Abnormal pressure notification device: checks the vapor gas pressure, issues an alarm when the pressure exceeds the set limit, and displays the status.

RECEIVER

Model No.

SHT-901(I) (Wall-mounted type)
SHT-901(P) (Panel-insertion type)

Type

A device for notifying abnormal pressure conditions

Operating temp / humi

-40℃ ~ +70℃ / 90% RH (Non-condensing)

Display type

Power on: Steady green lamp
LOW: Steady amber lamp
HIGH: Steady red lamp

Fuse volume

AC 0.5A (500mA)

Weight

0.75Kgs

GAUGE

Model No.

SHT-901(G)

Range of application

A device installed on gas pipelines in explosion-proof areas to measure abnormal pressure

Conduit connection gas

PT 1/2 (15A)

Conduit connection cable

PF 1/2 (16MM)

Approval

EX d IIB T6

PRESSURE RANGE

0~1K (=Kgf/cm2, bar)
0~2K (=Kgf/cm2, bar)
0~10K (=Kgf/cm2, bar)
0~15K (=Kgf/cm2, bar)
